TECHNICAL PAPER

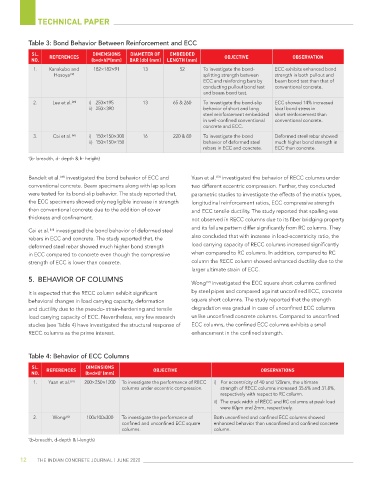

           Table 3: Bond Behavior Between Reinforcement and ECC

            sl.                 dimensions   diameter of   emBedded
            no.   referenCes    (b×d×h)*(mm)  Bar (db) (mm)  length (mm)     oBjeCtive              oBservation
            1.    Kanakubo and   182×182×91      13           52      To investigate the bond-  ECC exhibits enhanced bond
                   Hosoya  [47]                                       splitting strength between   strength in both pullout and
                                                                      ECC and reinforcing bars by   beam bond test than that of
                                                                      conducting pullout bond test   conventional concrete.
                                                                      and beam bond test.
            2.     Lee et al.  [48]  i)  250×195  13       65 & 260   To investigate the bond-slip   ECC showed 14% increased
                               ii)  250×390                           behavior of short and long   local bond stress in
                                                                      steel reinforcement embedded   short reinforcement than
                                                                      in well-confined conventional   conventional concrete.
                                                                      concrete and ECC.
            3.     Cai et al.  [50]  i)  150×150×300  16   220 & 80   To investigate the bond   Deformed steel rebar showed
                               ii)  150×150×150                       behavior of deformed steel   much higher bond strength in
                                                                      rebars in ECC and concrete.  ECC than concrete.
           * (b- breadth, d- depth & h- height)


           Bandelt et al.  investigated the bond behavior of ECC and   Yuan et al.  investigated the behavior of RECC columns under
                      [49]
                                                                           [51]
           conventional concrete. Beam specimens along with lap splices   two different eccentric compression. Further, they conducted
           were tested for its bond-slip behavior. The study reported that,   parametric studies to investigate the effects of the matrix types,
           the ECC specimens showed only negligible increase in strength   longitudinal reinforcement ratios, ECC compressive strength
           than conventional concrete due to the addition of cover   and ECC tensile ductility. The study reported that spalling was
           thickness and confinement.                             not observed in RECC columns due to its fiber bridging property
                                                                  and its failure pattern differ significantly from RC columns. They
           Cai et al.  investigated the bond behavior of deformed steel
                   [50]
           rebars in ECC and concrete. The study reported that, the   also concluded that with increase in load-eccentricity ratio, the
           deformed steel rebar showed much higher bond strength   load carrying capacity of RECC columns increased significantly
           in ECC compared to concrete even though the compressive   when compared to RC columns. In addition, compared to RC
           strength of ECC is lower than concrete.                column the RECC column showed enhanced ductility due to the
                                                                  larger ultimate strain of ECC.
           5.  BEHAVIOR OF COLUMNS
                                                                  Wong  investigated the ECC square short columns confined
                                                                       [52]
           It is expected that the RECC column exhibit significant   by steel pipes and compared against unconfined ECC, concrete
           behavioral changes in load carrying capacity, deformation   square short columns. The study reported that the strength
           and ductility due to the pseudo- strain-hardening and tensile   degradation was gradual in case of unconfined ECC columns
           load carrying capacity of ECC. Nevertheless, very few research   unlike unconfined concrete columns. Compared to unconfined
           studies (see Table 4) have investigated the structural response of   ECC columns, the confined ECC columns exhibits a small
           RECC columns as the prime interest.                    enhancement in the confined strength.



           Table 4: Behavior of ECC Columns

            sl.               dimensions
            no.  referenCes   (b×d×l)  (mm)          oBjeCtive                           oBservations
                                   *
            1.   Yuan et al.  [51]  200×250×1200  To investigate the performance of RECC   i)   For eccentricity of 40 and 120mm, the ultimate
                                          columns under eccentric compression.  strength of RECC columns increased 35.6% and 31.8%,
                                                                           respectively with respect to RC column.
                                                                         ii)   The crack width of RECC and RC columns at peak load
                                                                           were 60µm and 2mm, respectively.
            2.     Wong  [52]  100x100x300  To investigate the performance of   Both unconfined and confined ECC columns showed
                                          confined and unconfined ECC square   enhanced behavior than unconfined and confined concrete
                                          columns.                       column.
           * (b-breadth, d-depth & l-length)
