TECHNICAL PAPER

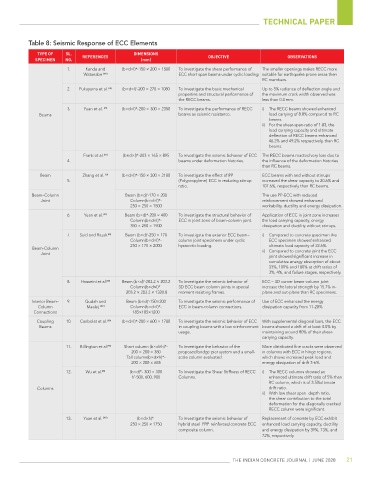

           Table 8: Seismic Response of ECC Elements

              type of    sl.                  dimensions
             speCimen   no.  referenCes          (mm)                  oBjeCtive                  oBservations
                        1.    Kanda and   (b×d×l)*-150 × 200 × 1500  To investigate the shear performance of   The smaller openings makes RECC more
                             Watanabe  [101]                 ECC short span beams under cyclic loading suitable for earthquake prone areas then
                                                                                         RC members.
                        2.  Fukuyama et al.  [78]  (b×d×l) -200 × 270 × 1080  To investigate the basic mechanical   Up to 5% radiance of deflection angle and
                                               *
                                                             properties and structural performance of   the maximum crack width observed was
                                                             the RECC beams.             less than 0.3 mm.
                        3.   Yuan et al.  [79]  (b×d×l)*-200 × 300 × 2350  To investigate the performance of RECC   i)   The RECC beams showed enhanced
              Beams                                          beams as seismic resistance.   load carrying of 8.8% compared to RC
                                                                                            beams.
                                                                                         ii)  For the shear-span-ratio of 1.83, the
                                                                                            load carrying capacity and ultimate
                                                                                            deflection of RECC beams enhanced
                                                                                            46.2% and 49.2% respectively, than RC
                                                                                            beams.
                             Frank et al.  [81]  (b×d×l)*-203 × 165 × 895  To investigate the seismic behavior of ECC  The RECC beams reacted very less due to
                        4.                                   beams under deformation histories.  the influence of the deformation histories
                                                                                         than RC beams.
               Beam          Zhang et al.  [13]  (b×d×l)*-150 × 300 × 2100  To investigate the effect of PP   ECC beams with and without stirrups
                        5.                                   (Polypropylene)-ECC in reducing stirrup   increased the shear capacity to 20.6% and
                                                             ratio.                      107.6%, respectively than RC beams.
            Beam–Column                    Beam (b×d) -170 × 200                         The use PP-ECC with reduced
                                                   *
               Joint                         Column(b×d×l)*-                             reinforcement showed enhanced
                                             250 × 250 × 1500                            workability, ductility and energy dissipation.
                        6.   Yuan et al.  [82]  Beam (b×d)*-200 × 400  To investigate the structural behavior of   Application of ECC in joint zone increases
                                             Column(b×d×l)*-   ECC in joint zone of beam-column joint.  the load carrying capacity, energy
                                             350 × 250 × 1900                            dissipation and ductility without stirrups.
                        7.  Said and Razak  [83]  Beam (b×d) -250 × 170  To investigate the exterior ECC beam–  i)   Compared to concrete specimen the
                                                   *
                                             Column(b×d×l)*-  column joint specimens under cyclic   ECC specimen showed enhanced
                                             250 × 170 × 2000  hysteretic loading.          ultimate load capacity of 22.6%.
            Beam-Column                                                                  ii)  Compared to concrete joint the ECC
               Joint
                                                                                            joint showed significant increase in
                                                                                            cumulative energy absorption of about
                                                                                            33%, 100% and 180% at drift ratios of
                                                                                            3%, 4%, and failure stages, respectively.
                        8.  Hosseini et al. [84]  Beam (b×d) -203.2 × 203.2  To investigate the seismic behavior of   ECC – 3D corner beam-column joint
                                                 *
                                             Column(b×d×l)*-  3D ECC beam-column joints in special   increase the lateral strength by 15.7% in-
                                            203.2 × 203.2 × 1320.8  moment resisting frames.  plane and out-plane than RC specimens.
            Interior Beam–  9.  Qudah and   Beam (b×d) -150×200  To investigate the seismic performance of   Use of ECC enhanced the energy
                                                   *
              Column          Maalej  [102]  Column(b×d×l)*-   ECC in beam-column connections.  dissipation capacity from 11-20%.
            Connections                       185×185×1200
             Coupling   10.  Canbolat et al.  [80]  (b×d×l)*-200 × 600 × 1700  To investigate the seismic behavior of ECC  With supplemental diagonal bars, the ECC
              Beams                                          in coupling beams with a low reinforcement  beams showed a drift of at least 4.0% by
                                                             usage.                      maintaining around 80% of their shear-
                                                                                         carrying capacity.
                       11.  Billington et al. [90]  Short column (b×d×h)*-   To investigate the behavior of the   More distributed fine cracks were observed
                                             200 × 200 × 380  proposed bridge pier system and a small-  in columns with ECC in hinge regions,
                                            Tall column(b×d×h)*-   scale column evaluated.  which shows increased peak load and
                                             200 × 200 × 685                             energy dissipation of drift 3-6%.
                       12.    Wu et al. [85]  (b×d)*- 300 × 300  To investigate the Shear Stiffness of RECC   i)  The RECC columns showed an
                                              h -500, 600, 900  Columns.                    enhanced ultimate drift ratio of 5% than
                                              *
                                                                                            RC column, which is of 3.5%ultimate
              Columns                                                                       drift ratio.
                                                                                         ii)   With low shear-span- depth ratio,
                                                                                            the shear contribution to the total
                                                                                            deformation for the diagonally cracked
                                                                                            RECC column were significant.
                       13.   Yuan et al.  [103]  (b×d×h)*-   To investigate the seismic behavior of   Replacement of concrete by ECC exhibit
                                             250 × 250 × 1750  hybrid steel–FRP-reinforced concrete ECC   enhanced load carrying capacity, ductility
                                                             composite column.           and energy dissipation by 39%, 73%, and
                                                                                         72%, respectively.
